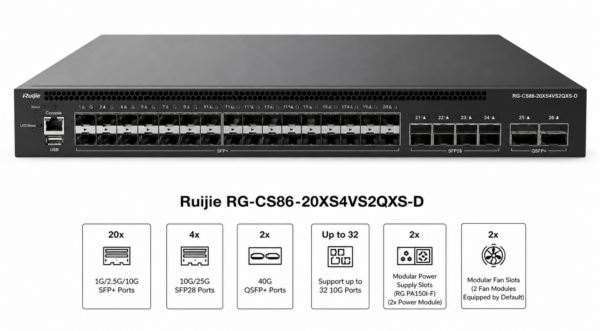

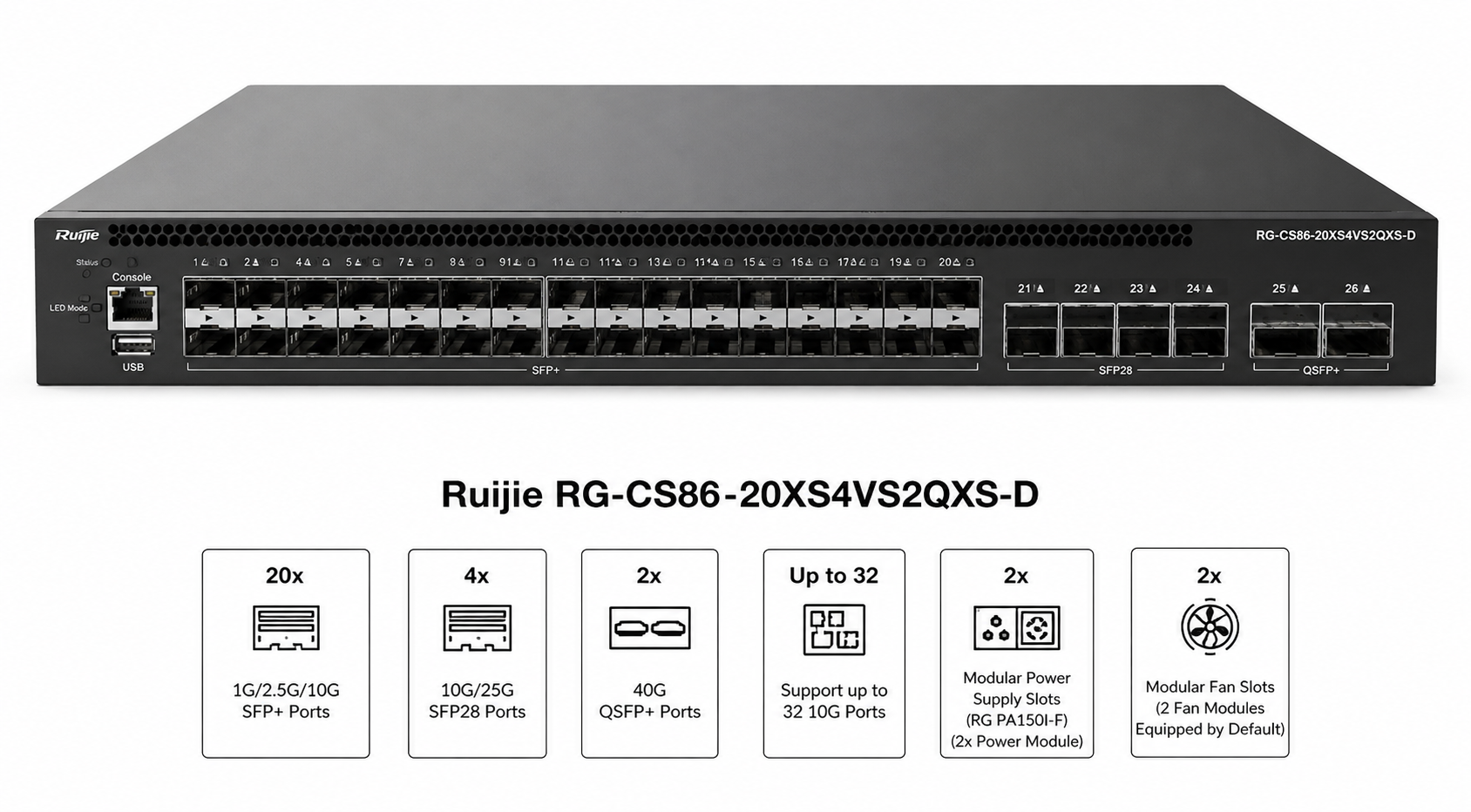

Ruijie RG-CS86-20XS4VS2QXS-D

₨ 527,500.00

Port Density: 20 × 1G/2.5G/10G SFP+ ports, 4 × 10G/25G SFP28 ports, and 2 × 40G QSFP+ ports (supports up to 32 × 10G ports max).
Performance: 760 Gbps switching capacity and 570 Mpps packet forwarding rate in a 1U form factor.
Power Redundancy: 2 modular power supply slots supporting 1+1 hot-swappable redundancy (requires RG-PA150I-F or RG-PA150IB-F modules).
Fan Redundancy: 2 modular, hot-swappable variable-speed fan slots (2 × fan modules included by default).
Layer 3 Routing: Full IPv4/IPv6 dual-stack support with static routing, OSPF, BGP, RIP, and IS-IS.
High Availability: Virtual Switching Unit (VSU) support for multi-switch virtualization and instant failover.
Management & Security: Cloud-managed via Ruijie Cloud, with built-in Network Foundation Protection Policy (NFPP) and CPU Protection Policy (CPP).

Category: networking Brand: Ruijie Networks

Description

Downlink Ports: 20 × 1G/2.5G/10GBASE-X SFP+ optical ports.

Visiotech
High-Speed Uplink Ports: 4 × 10G/25GBASE-X SFP28 ports and 2 × 40GBASE-X QSFP+ ports.

Visiotech
Maximum 10G Port Capacity: Supports up to 32 × 10G ports concurrently (using all 20 SFP+ ports, down-rating the 4 SFP28 ports to 10G, and splitting the 2 QSFP+ ports into 4 × 10G breakout links each).

Visiotech
Form Factor: 1U compact rack-mountable metal chassis.

Visiotech

Switching Fabric Capacity: Up to 760 Gbps.

Visiotech
Packet Forwarding Rate: Up to 570 Mpps.

Visiotech
MAC Address Table: Supports up to 32,768 entries.

Visiotech
Routing Table Capacity: Supports up to 16,000 IPv4 routes and 16,000 IPv6 routes.

Visiotech

Power Redundancy: 2 modular power supply slots supporting 1+1 hot-swappable redundancy (requires at least one RG-PA150I-F or RG-PA150IB-F 150W AC module).

Ruijie Networks
Cooling System: 2 modular, hot-swappable variable-speed fan slots (2 × M1SFANI-F fan modules pre-installed by default).

Dicomp
Flash Boot Redundancy: Dual Flash memory chips (16 MB BootROM / 1 GB Flash) to prevent boot failure during system updates.

Ruijie Networks
Optical Isolation: Hardware-level short-circuit protection prevents a single faulty transceiver from affecting adjacent ports or internal power lines.

Ruijie Networks

L3 Routing Features: Static routing, OSPFv2/v3, RIP/RIPng, BGP4/BGP4+, and IS-IS.

businesscom.cz
Control Plane Protection: Built-in CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) mitigate DDoS, ARP flood, and broadcast attacks.

Visiotech
Virtual Switching Unit (VSU): Allows up to 2 physical switches to be virtualized into 1 logical device for simplified management, zero loop topology, and instant failover.

Ruijie Networks

Cloud Management: Full native integration with Ruijie Cloud for zero-touch provisioning, remote O&M, visual topology, and real-time alerts.
Local Management: 1 × RJ45 Console port, 1 × RJ45 out-of-band Ethernet MGMT port, and 1 × USB port for offline log/firmware transfers.

Dicomp
